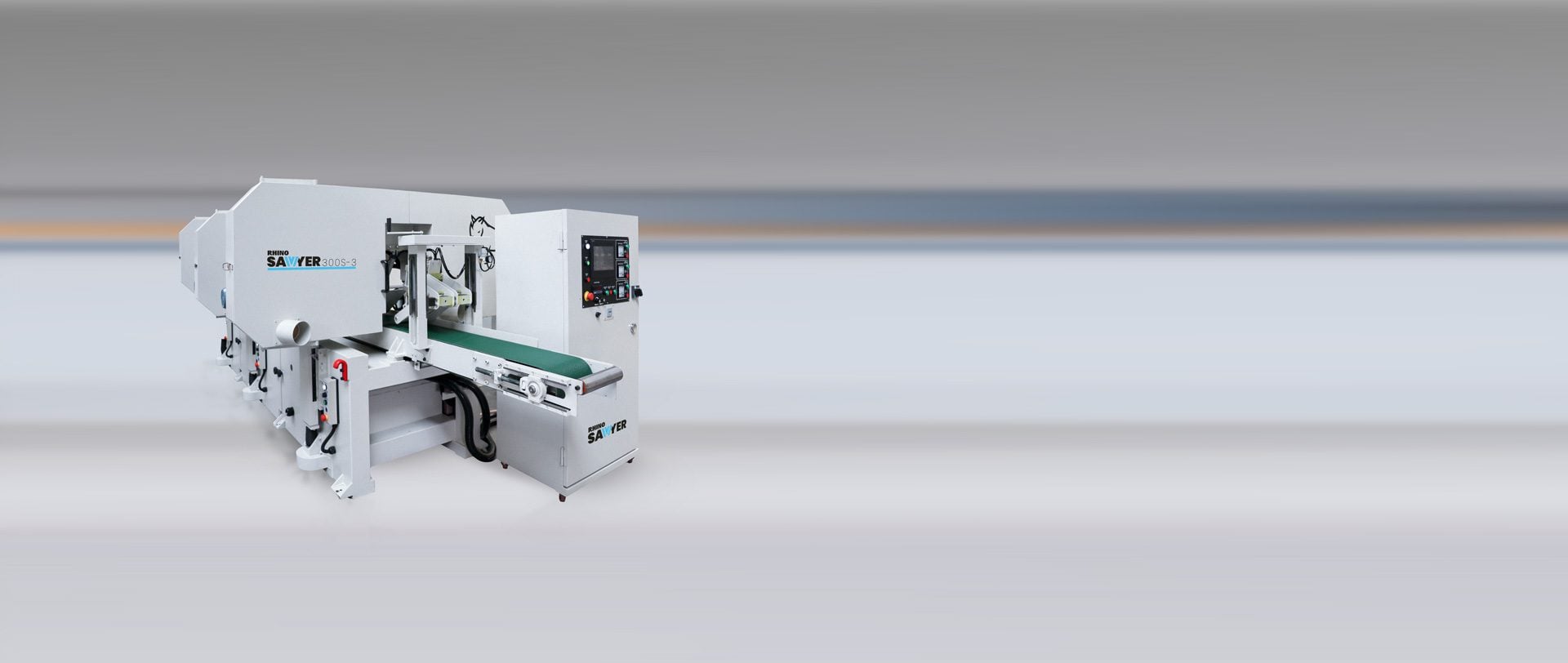

Horizontal thin cutting band saw with 2 or 3 saw heads.

Thanks to their flexible design, Rhino Sawyer thin cutting horizontal bandsaws offer customers excellent performance and are very flexible in cutting different sizes of wood. That is why XL Multiple Head Series is equipped with 2 or 3 saw heads. This allows you to produce up to 4 slats at once.

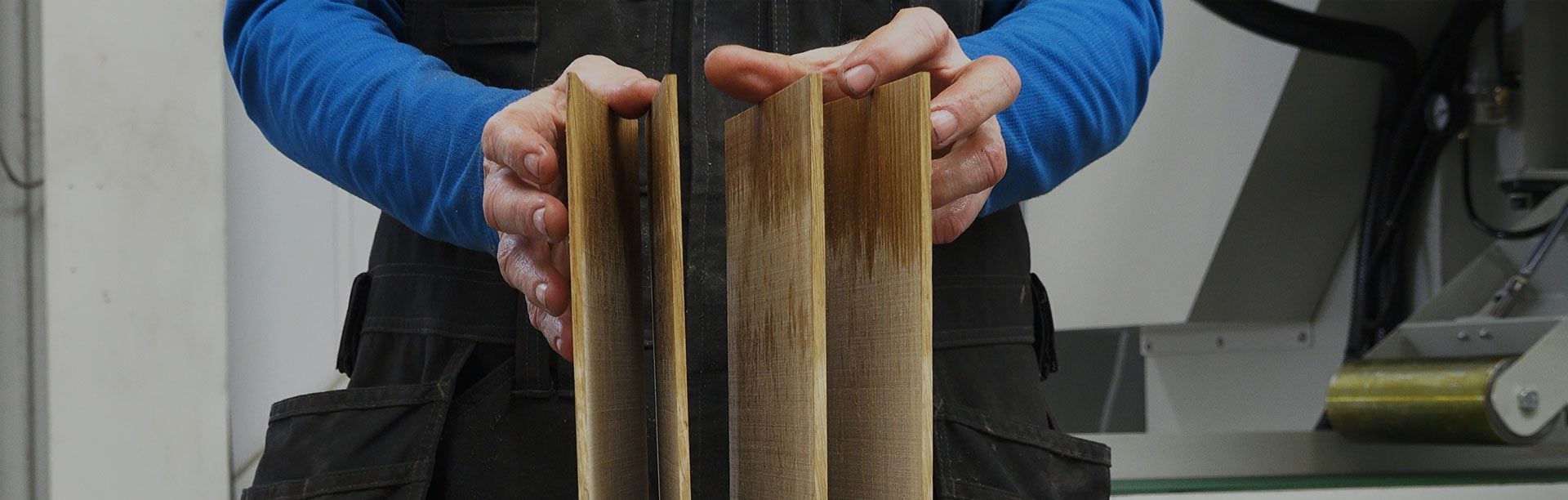

Rhino thin cutting solutions for wood are used, for example, in the production of slats from 2 mm thick. Plus, whether you’re cutting wood in wet or dry conditions, a single cut or making 4 lamella in one go – the Sawyer XL Multiple Head Series is the perfect band saw for this.

Sawyer 300S-3 multiple head series
Sawyer-XL-Multiple-Head-Series-header-3-koppen
Sawyer-XL-Multiple-Head-Series-header-control-panel
Sawyer-XL-Multiple-Head-Series-header-invoer
Sawyer XL Multiple Head Series 2 Banden
Sawyer XL Multiple Head Series 3 Banden
Sawyer 300S-3 multiple head series
Sawyer-XL-Multiple-Head-Series-header-3-koppen
Sawyer-XL-Multiple-Head-Series-header-control-panel
Sawyer-XL-Multiple-Head-Series-header-invoer
Sawyer XL Multiple Head Series 2 Banden
Sawyer XL Multiple Head Series 3 Banden
Sawyer 300S-3 multiple head series
Sawyer-XL-Multiple-Head-Series-header-3-koppen
Sawyer-XL-Multiple-Head-Series-header-control-panel
Sawyer-XL-Multiple-Head-Series-header-invoer
Sawyer XL Multiple Head Series 2 Banden
Sawyer XL Multiple Head Series 3 Banden

Sawyer - Made in Taiwan

XL Multiple Head Series is available with 2 or 3 cutting heads in 300 and 400 mm wide.

Specifications

Maximum material size at 0 degrees (w x h) 310 x 200 mm
Minimum cut piece in mm 2 mm
Saw wheel diameter 970 mm
Feed speed 0-25 m/min (with inverter)
Saw wheel motor (IE-3 energy efficient ) 2 (3 or 4) x 22.0 KW
Distance from blade to conveyor 2-200 mm

Sawyer XL Multiple Head Series 2 zaagkoppen

Sawyer XL Multiple Head Series 3 Banden

MODULE “DOUBLE SPEED”

Thanks to a special sensor, the machine starts to cut the timber at a lower speed, immediately after the sawblade is inside the wood the cutting speed increases.

SCHNEIDER TOUCHSCREEN

Operating the machine is all controlled from the touchscreen, like setting thickness, feed speed and saw wheel speed. solutions for wood are used in, for example, the production of lamellas starting with 2 mm thickness

Like for example making:

  • Parquet floors
  • Beams
  • Lamellas
  • Glued wood
  • Doors
  • Furniture

SPECIAL PRESSURE GUIDE SYSTEM

This high-tech material – Made in Switzerland – is heat-resistant and guarantees precise blade guiding and long lifetime.

Sawyer-swiss-made

SPECIAAL DRUKGELEIDINGSSYSTEEM

Rhino-Sawyer-Extend-Light-brochure2

Download the brochure

Download

Rhino-Sawyer-400xl-bandzaag-schneider-touchscreen

Sawyer Cutting track®

With this option it informs the user interactive about the sharpness of the saw blade. You could set the range for cutting track, if over to the range the feeding system will be stopped automatically. Sensor will connect the PLC every 0.5 seconds.
